Official Statistics

Electric vehicle charging device grant scheme statistics: January 2022

Published 24 February 2022

We are providing this compact HTML format for our quarterly publication and we would like to hear your comments. If you have any feedback on our use of this format, please email Environment Statistics.

About this release

This summary presents experimental statistics on the number of grants awarded for the installation of electric vehicle charging devices in the United Kingdom as of 1 January 2022.

The Office for Zero Emission Vehicles (OZEV) provides grants to support the use of electric vehicles, including the installation of charging devices in the UK. This summary covers statistics on selected grant schemes currently running, including the Electric Vehicle Homecharge Scheme (EVHS), Workplace Charging Scheme (WCS) and the On-Street Residential Chargepoint Scheme (ORCS). This publication also covers the Domestic Recharging Scheme (DRS), the predecessor to the EVHS.

Headline figures

Domestic Charging Devices

As of 1 January 2022:

• OZEV funded grant schemes (EVHS and DRS) have delivered 277,030 domestic charging devices since 2013
• the EVHS has funded the installation of 236,697 domestic charging devices
• the EVHS funded 88,624 device installations since 1 January 2021, an increase of almost 60%

Workplace Charging Devices

As of 1 January 2022:

• the WCS has funded the installation of 22,977 sockets in workplace carparks since the scheme started in 2016
• the WCS funded 9,648 sockets installations since 1 January 2021, an increase of 72%

On-Street Residential Devices

As of 1 January 2022:

• the ORCS has funded 2,038 public charging devices which have been installed across local authorities in the UK
• 435 on-street charging devices were installed after being claimed for by the local authorities in the previous 3 months
• funding has also been awarded for 4,539 additional ORCS charging devices to be installed in the future

Electric Vehicle Homecharge Scheme (EVHS)

The EVHS provides grant funding for up to 75% of the cost of installing electric vehicle charging devices at domestic properties across the UK. More information on the grant scheme is available.

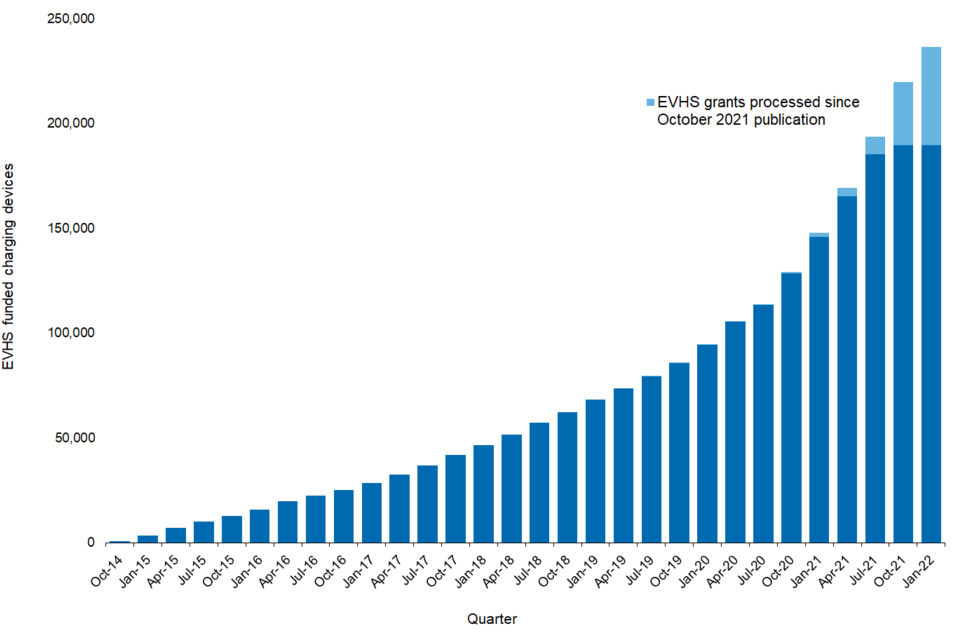

Chart 1 - Cumulative growth of EVHS funded charging devices, October 2014 onwards, UK Table EVG_01

Since September 2014, a total of 236,697 domestic charging devices have been installed under the scheme, with a total grant value of £104.5 million. In the last 12 months the number of EVHS funded charging devices has increased by 88,624 to almost 60%, corresponding to an additional £31.0 million in grant value.

These statistics are taken from a database held by DVLA which records grant applications for administrative purposes. Grants can take several months to process and the most recent quarters are likely to be undercounted, especially the fourth quarter of 2021. The statistics should therefore be treated as provisional.

For example, the number of EVHS installations from July to October 2021 has increased by 21,797 since the last publication, as more applications for that period have been processed.

In addition to the EVHS, the Domestic Recharge Scheme (DRS) has also helped private plug-in vehicle owners offset the upfront cost of the purchase and installation of a dedicated recharging unit. This funded an additional 40,333 domestic charging device installations between 2013 and 2014, before it was replaced by the EVHS. A quarterly breakdown of DRS installations can be found in Table EVG_12.

Together, the EVHS and DRS have contributed to the installation of 277,030 domestic electric vehicle charging devices across the UK as of 1 January 2022.

There is an uneven geographical distribution of EVHS charging devices within the UK. Grant uptake by consumers is likely to be dependent on a variety of factors, including:

• access to an electric vehicle
• access to off-street parking
• leasehold or tenancy properties
• car ownership
• rurality
• income

Maps 1 and 2 - Regional distribution of the total number of EVHS installations and EVHS installations per 100,000 households

As Map 1 shows, the South East had the highest number of charging device installations under the EVHS, accounting for 19% of total devices installed under the scheme. Meanwhile, Northern Ireland had the lowest number of installations with 3,954 EVHS funded charging devices, accounting for just 1.7% of total EVHS funded devices.

As Map 2 shows, the South East also had the highest number of EVHS devices per 100,000 households whilst Northern Ireland and London had the lowest with less than 600 devices per 100,000 households. Further detail on the regional breakdown of EVHS device numbers displayed in Maps 1 and 2 can be found in Annex A.

Further detail on the regional breakdown of EVHS device numbers displayed in Maps 1 and 2 can be found in Annex A.

Table EVG_02 and Table EVG_04 also provides a breakdown of EVHS charging devices and their grant value in each local authority in the UK whilst Table EVG_03 provides a breakdown of charging devices installed in each postcode district.

Workplace Charging Scheme (WCS)

The WCS is a voucher-based scheme designed to provide eligible organisations with support towards the upfront costs of the purchase and installation of electric vehicle charging devices. If an application is successful, applicants are issued with a unique identification voucher, which can then be used to install multiple charging devices. In these statistics, the number of sockets installed is counted as sometimes there is one grant for up to four charging devices in the same workplace carpark. More information on the grant scheme is available.

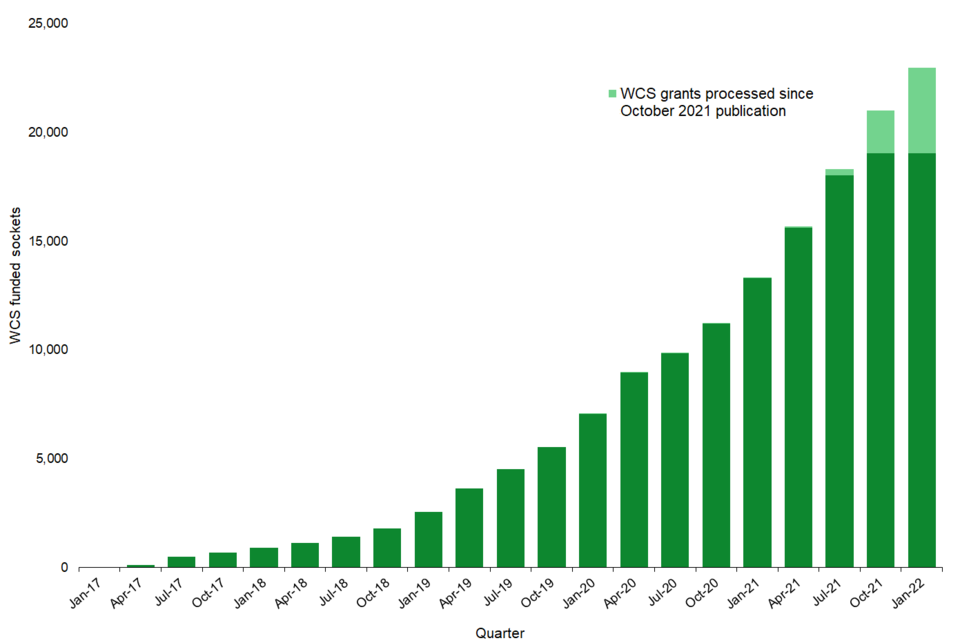

Chart 2 - Cumulative growth of WCS funded sockets Table EVG_05

Since the scheme started in late 2016, a total of 8,400 vouchers have been redeemed accounting for 22,977 sockets installed under the WCS grant. This equated to a total grant value of £9.3 million.

In the last 12 months, 3,738 vouchers were redeemed, corresponding to the installation of 9,648 sockets. This had a grant value of £3.4 million. This represented a 72% increase in WCS sockets across the UK.

These statistics are taken from a database which records grant applications for administrative purposes. Grants can take several months to process and the most recent quarters are likely to be undercounted. The statistics should therefore be treated as provisional.

Maps 3 and 4 - Regional distribution of total number of WCS socket installations and per 100,000 of population

As Map 3 shows, in terms of regional distribution of WCS sockets, the South East had the highest uptake with 3,426 sockets installed whilst Wales and Northern Ireland had the lowest. Together, Wales and Northern Ireland accounted for 5.7% of total sockets installed under the WCS in the UK.

When comparing the regional distribution per 100,000 of the population as seen in Map 4, London had the smallest number of WCS installations in the UK with 17 WCS installations per 100,000. Scotland, Wales, and Northern Ireland also had fewer WCS installations than any English region except London.

Further detail on the regional breakdown of WCS socket numbers displayed in Maps 3 and 4 can be found in Annex A.

Table EVG_06 and Table EVG_07 also provides a further breakdown of WCS sockets installed and their grant value in each local authority in the UK.

On-Street Residential Chargepoint Scheme (ORCS)

This scheme is available to all UK local authorities to fund up to 75% of the capital costs of installing on-street residential charging devices to ensure that those without private off-street parking are able to access reliable and affordable charging infrastructure. More information on the scheme is available.

Maps 5 and 6 - Distribution of local authorities which have been awarded ORCS funding for the UK and London

As of 1 January 2022, the ORCS has funded the installation of 2,038 public charging devices since the scheme was established in 2017. This represents £6.8 million of grant funding across 75 councils. The details of which can be found in Table EVG_08 and Table EVG_09. An additional 435 on-street devices were recorded as installed in the previous 3 months.

Of the councils that have already completed installations, 21 have had further funding awarded to install a further 1,209 charging devices with a grant value of £4.4 million.

A further 67 local authorities have also been awarded grant funding, providing 3,330 on-street public charging devices with their installations yet to be completed. This represents a grant value of £15.6 million.

A table of councils which have applied for this funding can be found in Table EVG_10 and Table EVG_11 and shown for the UK and London in Maps 5 and 6.

In February 2021, OZEV announced that the scheme would continue into the 2021-22 financial year with a £20 million budget.

Current levels of public charging provision by local authority area can be found in the public electric vehicle charging devices statistics which are published quarterly. These will include the ORCS funded charging devices.

Background notes and limitations of data

This is a quarterly statistical release on electric vehicle infrastructure grant data. We welcome feedback from users of the statistics. This can be provided by emailing Environment Statistics.

These statistics are taken from databases which record grant applications for administrative purposes. In some cases, grants can take several months to process with the most recent quarter likely to be undercounted both for the EVHS and WCS. These statistics should therefore be treated as provisional. For example, the number of EVHS installations for July to October 2021 has increased by 21,797 since the last publication, as more applications for that period have been processed.

The ORCS grants are offered to successful applicants, but funds are only released upon final completion of information. Charging devices are only counted as installed when they have been installed and claimed for by the local authority.

The total number of domestic and workplace charging devices installed in the UK is likely to be different to the figures provided in this report as there is no requirement to register a privately funded charging device with the Government. We are also unable to confirm if the charging devices installed under the schemes are still operational. In addition, chargepoint manufacturers have to be approved by OZEV with some choosing not to be part of the grant schemes:

• approved manufacturers for the EVHS
• approved manufacturers for the WCS

In addition, these statistics present data on selected OZEV schemes which are currently running. OZEV offers a range of other support for the take-up of plug in vehicles, including further targeted schemes providing funding to support chargepoint infrastructure across the UK. More information can be found on the OZEV website.

Population figures by local authority are sourced from the Office for National Statistics Population Mid-Year Estimates for 2020. Household figures by local authority are sourced from the Office for National Statistics Estimated Number of Households in the UK in 2018. The local authority administrative geographies are from April 2021, available from the ONS Geography Portal.

The quarterly statistical series complements three earlier releases presenting statistics on observed usage and charging patterns for electric vehicle charging devices:

• local authority rapids
• public sector fasts
• domestics

The Department for Transport also publishes statistics on publicly available electric vehicle charging devices.

Experimental Statistics

These quarterly statistics are badged as Experimental Statistics. Users should be aware of the status and cautions of these series, which will vary for each statistic and will be explained in each publication. The statistics are new but still subject to testing in terms of their volatility and ability to meet customer needs.

They do not necessarily meet the rigorous quality standards of National Statistics, for example with administrative data. Further details on the limitations of Experimental Statistics can be found at the Office for Statistics Regulation.

Annex A: EVHS and WCS Regional Table

Table 1 - EVHS Total Devices and Devices per 100,000 Households per Region (Maps 1 and 2)

Region	EVHS Total Devices	EVHS Devices per 100,000 Households
United Kingdom	236,697	864
North East	9,197	800
North West	24,801	809
Yorkshire and the Humber	18,766	820
East Midlands	18,945	1,140
West Midlands	20,832	877
East of England	26,216	1,028
London	19,105	558
South East	45,345	1,230
South West	21,296	911
Wales	8,522	632
Scotland	17,518	708
Northern Ireland	3,954	527
Unknown	2,200	-

Table 2 - WCS Total Sockets and Devices per 100,000 Population per Region (Maps 3 and 4)

Region	WCS Total Sockets	WCS Sockets per 100,000 Population
United Kingdom	22,977	34
North East	1,078	40
North West	2,620	36
Yorkshire and the Humber	2,377	43
East Midlands	2,190	45
West Midlands	2,345	39
East of England	2,724	44
London	1,486	17
South East	3,426	37
South West	2,071	37
Wales	850	27
Scotland	1,345	25
Northern Ireland	465	25

To hear more about DfT statistical publications as they are released, please follow us on Twitter.

Next update

Quarterly electric vehicle charging device grant scheme statistics will be released in May 2022.
